Electro-Fashion, Sewable Light Kit, White Flat Sewable LEDs
£6.19
Web Code
KIT2738
QTY:
Over 200 in stock
Electro-Fashion, Sewable Light Kit, White Flat Sewable LEDs
This fantastic new Electro-Fashion kit from Kitronik has been specially designed so that electronics can easily be used in textile applications - without soldering!
The kit includes conductive thread (which is a thread that can be used like cotton thread but conducts electricity like a wire), our own custom designed Sewable Coin Cell Holder, one coin cell battery, and two ultra slim, pre-mounted, easy sew E-Textile LEDs.
The coin cell holder has the benefit of large, easy-to-stitch connection points (no more difficult little holes!) and clearly marked terminals that show the battery polarity.
The LEDs are less than 3mm tall and are also clearly marked with '+' and '-' to indicate which is the positive and which is the negative connection. The PCBs are double sided, making the conductive thread connection very reliable (see example picture below).
Features:
Ultra Slim Sewable LEDs.
Easily add lights to textiles projects.
Easy-to-stitch connection points.
Clearly marked '+' and '-' connections..
No soldering required.

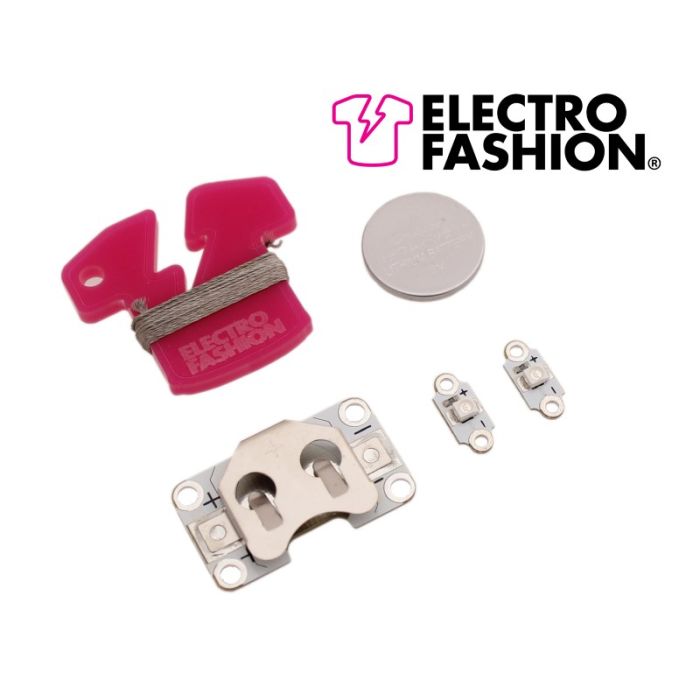

Contents:
1 x Coin Cell Holder.
2 x Electro-Fashion® LEDs (Blue, Green, Red, White, Orange or Yellow).
1 x 2m Conductive Thread.
1 x CR2032 3V Coin Cell.
LED Colour Variants:
Blue - Product Code: 2735
Green - Product Code: 2736
Red - Product Code: 2737
White - Product Code: 2738
Orange - Product Code: 2768
Yellow - Product Code: 2769
Dimensions:
Sewable Coin Cell Holder Length: 34mm.
Sewable Coin Cell Holder Width: 20mm.
Sewable Coin Cell Holder Height: 4.5mm.
LED Length: 15mm.
LED Width: 6.5mm.
LED Height: 2.7mm.
CR2032 Battery Height: 3.2mm.
CR2032 Battery Diameter: 20mm.
Requires:
Scissors.
Needles.
Web Price | £6.19 |
---|---|
Web Code | KIT2738 |
Alternative Codes | KIT2738 |
Brand | Kitronik |
Pack Size | Each |
Pack Size | Each |
