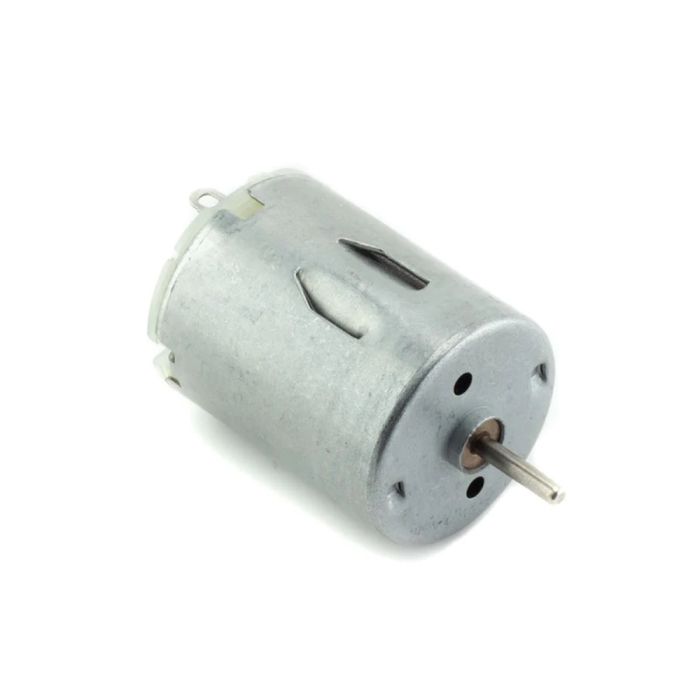

High Torque DC Miniature Motor 3V 12200rpm
Web Code:
EL278
£1.49
A low-cost miniature motor.
Applications including models, robotics and educational demonstration equipment. Changing the polarity will run the motor in the opposite direction.
Operating voltage: 1.5 to 4.5V dc.
Rated Voltage: 3Vdc.
No load speed: 15000rpm.
Load current: 1.17A.
Weight: 19g.
Torque: 10g/cm.
Shaft diameter: 2mm.
Dimensions: 31 x 24 x 20mm (L x W x D).
Applications including models, robotics and educational demonstration equipment. Changing the polarity will run the motor in the opposite direction.
Operating voltage: 1.5 to 4.5V dc.
Rated Voltage: 3Vdc.
No load speed: 15000rpm.
Load current: 1.17A.
Weight: 19g.
Torque: 10g/cm.
Shaft diameter: 2mm.
Dimensions: 31 x 24 x 20mm (L x W x D).
| Web Price | £1.49 |
|---|---|
| Web Code | EL278 |
| Alternative Codes | EL278 |
| Catalogue Page Number | Dryad Education |
| Pack Size | Each |
This product is classified as an 'article' and therefore by law does not require a safety data sheet under current legislation.
