Kitronik 555 Timer Astable (Tone Generator) Kit
£4.58
Web Code
KIT2117
QTY:
Over 200 in stock
Kitronik 555 Timer Astable (Tone Generator) Kit
This kit is perfect for GCSE students needing to use a 555 timer in its astable mode, where it produces a square wave output. The frequency of which is adjustable via the variable resistor. The board has a choice of two outputs. The logic output can be used to drive another IC or a speaker can be connected so the tone is heard (e.g. a door bell).
The push button switch connects to the reset line such that the IC is only active when the button is pressed.
Features:
The 555 Timer Astable (Tone Generator) Kit produces a square wave output.
The frequency of the aquare wave is adjustable via the variable resistor.
Contents:

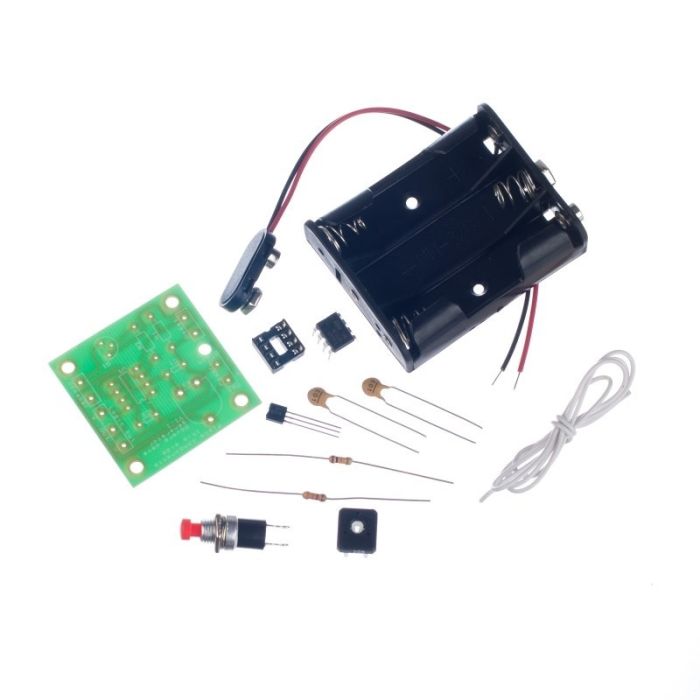

1 x 555 Timer IC.
1 x 8 Pin IC Holder.
1 x 3.3KΩ Resistor.
1 x 10KΩ Resistor.
1 x 47KΩ Potentiometer.
2 x 10nF Ceramic Capacitors.
1 x BC547 NPN Transistor.
1 x Push To Make Switch.
1 x PP3 Clip Lead.
1 x 3AA Battery Holder.
0.5m Connecting Wire
1 x Tone Generator PCB
Dimensions:
PCB Length: 40mm.
PCB Width: 40mm.
Requires:
3 x AA Batteries.
Soldering Iron.
Solder.
Wire Cutters.
Wire Strippers.
Note:
This kit requires soldering.
Requires x 3 x AA Batteries. and depending upon desired use a speaker, both available separately.
Web Price | £4.58 |
---|---|
Web Code | KIT2117 |
Alternative Codes | KIT2117 |
Brand | Kitronik |
Pack Size | Each |
Pack Size | Each |
