Kitronik Alarm Project Kit

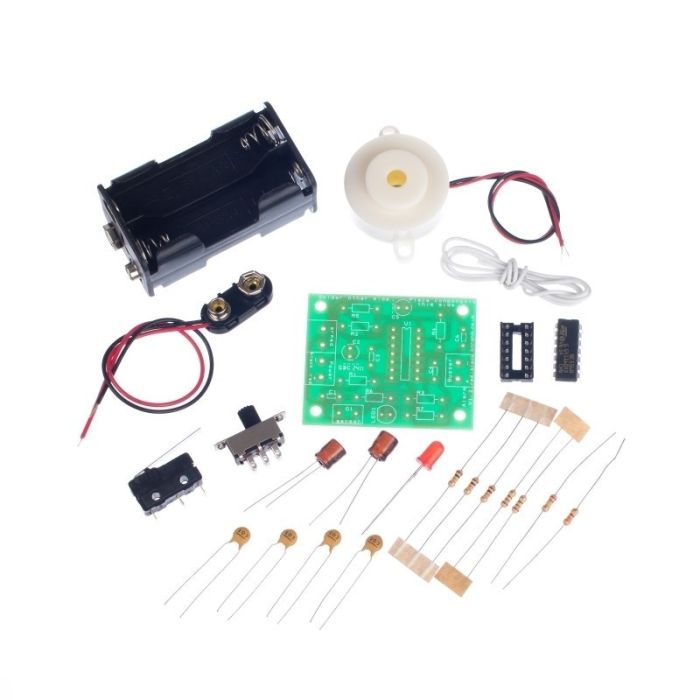

This kit can be used to make a shed or room alarm when mounted on the top of a door, drawers or any other object with a moveable opening. It can also be used by replacing the micro switch with a magnetic door contact. A micro switch acts as a trigger mechanism and is armed / disarmed by a seperate sliding switch. The door's movement is detected by a micro switch mounted onto a door or object with a lid. A timer provides an entry delay during which the system can be disarmed by the slide switch, whilst a separate timer silences the alarm after two minutes. Both of these timers are implemented via a 556 dual timer IC. The alarm can be further enhanced by using a simple key switch for arming / disarming or by replacing the micro switch with a magnetic door contact switch to activate it. The board, battery pack & buzzer can be placed into a box designed by the student. Features: Can be enhanced with a key switch to arm/disarm. Can be enhanced by replacing the micro switch with a magnetic door contact switch. Entry delay for disarming. Contents: 1 x PP3 Battery Clip Lead (Heavy Duty). 1 x 4xAA Battery Cage with Clip. 1 x Miniature DPDT Slide Switch. 1 x NE556 Dual Timer IC. 1 x IC Socket 14 Pin. 1 x Piezo Buzzer (with Drive). 4 x Capacitor, Ceramic, 50V, 10nF. 2 x 100uF Cap Low Leakage. 3 x 10KΩ Resistor. 1 x 220KΩ Resistor. 2 x 1.2MΩ Resistor. 1 x Micro Switch with Medium Lever. 1 x Red 5mm Diffused LED - 275mCd. 1 x 330Ω Resistor. 1 x Alarm Project Kit PCB. Possible applications include: Adding an alarm to a cookie/biscuit tin. Adding an entry alarm to a door. Dimensions: PCB Length: 51mm. PCB Width: 41.5mm. Requires: 4 x AA Batteries. This kit is supplied in a simple grip seal bag.
