The xylophone has eight notes. Each note is sounded by placing a finger onto a tab along the side of the PCB, allowing a simple tone to be played.
The conversion of key presses into the frequency of the note is done by a PIC micro-controller, pre-programmed with software for this application.
Features:
8 note xylophone.
Pre-programmed PIC micro-controller chip.

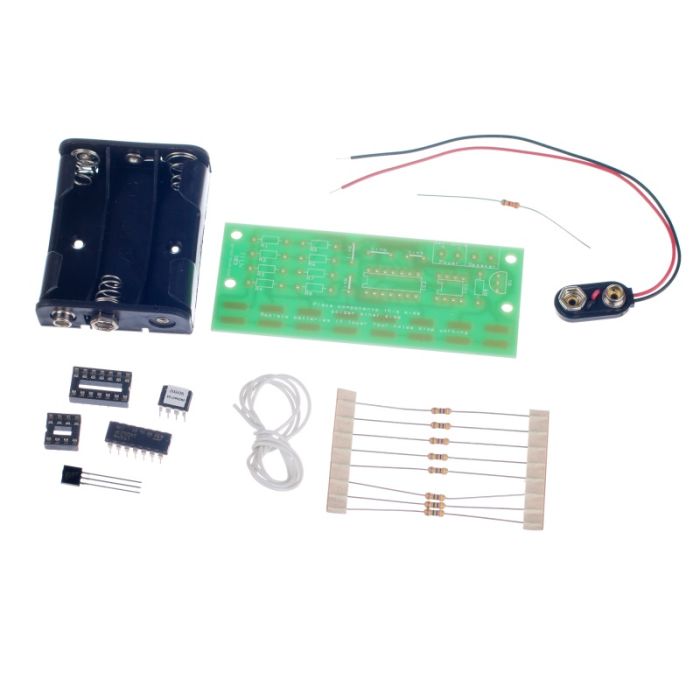

Contents:
1 x Pre-programmed PIC Chip.
1 x PP3 Battery Clip Lead (Heavy Duty).
1 x 3xAA Battery Cage with Clip.
1 x LM324 Quad Op Amp.
1 x IC Socket 14 Pin.
1 x CR1220 PCB Mount Battery (with Pins).
1 x IC Socket 8 Pin.
8 x 4.7MΩ Resistor.
1 x 3.3KΩ Resistor.
1 x BC337 NPN Transistor.
1 x 8Ω 50mm Speaker.
1 x Xylophone Project Kit PCB.
