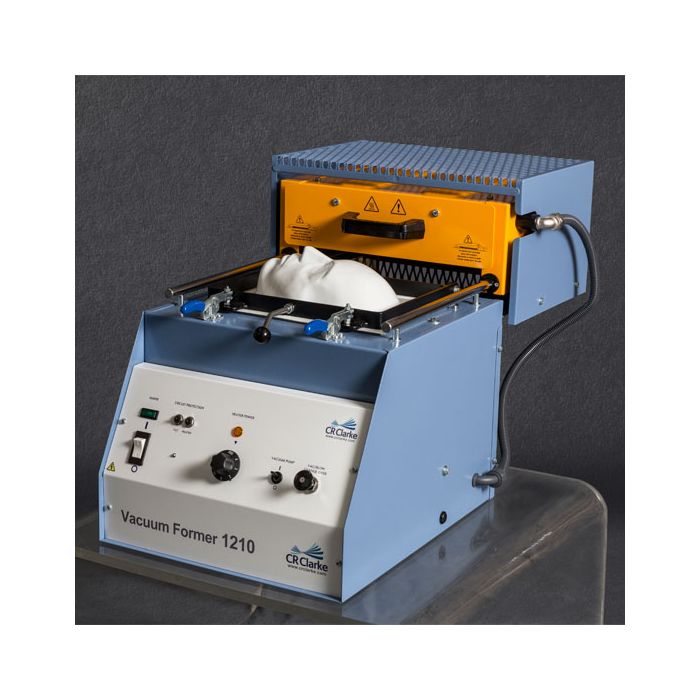

CR Clarke Vacuum Former Model 1210

Compact, reliable and simple to operate making it ideal for schools and model makers. Will form 228 x 305mm sheets (quarter standard sheet size).

Features include:
• Maximum forming aperture: 204 x 280mm
• Sheet size: 228 x 305mm
• Maximum material thickness: 6mm
• Maximum mould height: 100mm
• Ceramic heater system
• Heat resistant moulded RTV silicone seals
• Blow release facility
• Mechanical interlock prevents moulds damaging heaters
• Stand available

Specifications:
• Voltage: 230V, 50-60Hz
• Motor: 1ph (240V), 1.235kW
• Heater: 230/115V, 1.235kW
• Maximum current: 5.9A
• Platen stroke: 115mm
• Vacuum pulling capacity (typical): 635mm Hg (0.83 bar)
• Dimensions: 500 x 840 x 570mm (W x D x H)
• Weight: 36kg
• Supplied with a single phase plug as standard. Please call if you'd prefer a three phase option

*This item is excluded from any promotional discounts.
