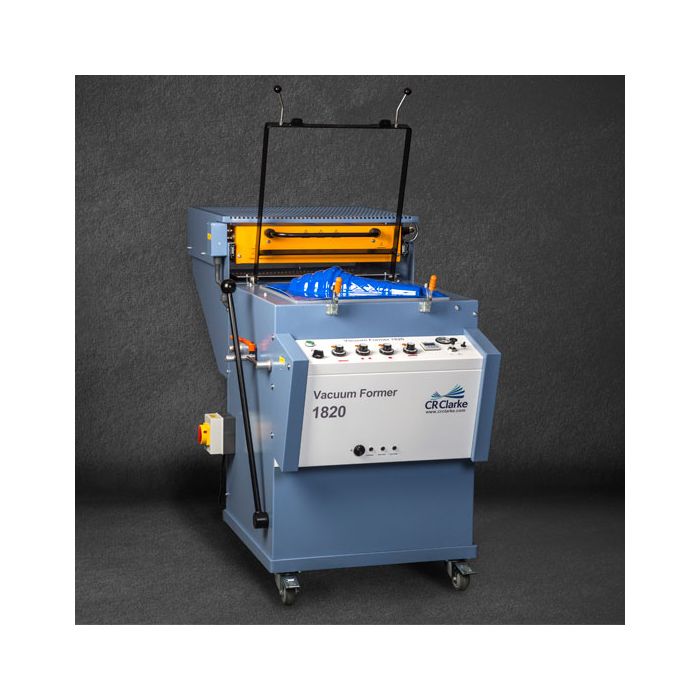

CR Clarke Vacuum Former Model 1820

Web Code: MP520
£11,299.00
Features include:
• Maximum forming aperture: 432 x 482mm
• Sheet size: 458 x 508mm
• Maximum material thickness: 6-8mm
• Maximum mould height: 280mm
• 4 individual heat zones
• Heat resistant moulded RTV silicone seals
• Inverse wiring system gives precise control of heat emission
• Roll feed & timer controlled fans
• Blow release
• Mechanical interlock prevents moulds damaging heaters

Specifications:
• Voltage: 220-240V, 50-60Hz
• Motor: 1ph (230V), 4kW
• Heater: 230/115V, 4kW
• maximum current: 12.26-14.16A
• Platen stroke: 305mm
• Vacuum pulling capacity (typical): 635mm Hg (0.83 bar)
• Dimensions: 1,160 x 840 x 1,420mm (H x W x D)
• Weight: 174kg
• Supplied with a single phase plug as standard. Please call if you'd prefer a three phase option
Web Price £11,299.00
Web Code MP520
Alternative Codes MP520, 319618
Catalogue Page Number 930
Brand CR Clarke
Pack Size Each
GTIN 5028288218110
This product is classified as an 'article' and therefore by law does not require a safety data sheet under current legislation.
