Mobile Bench 03 - Bandfacer Fret Saw and Extractors
Key Features:
• Industrial grade hardwearing castors
• Emergency Foot Stops where necessary
• All machines pre wired and ready to go
• Integrated extraction system comes with LEV Indicator
• Supplied fully assembled ready to plug into single phase 16amp commando type socket
• Interlocking (electric and extraction)
• Manufacturers 1 year warranty
• UK Manufactured

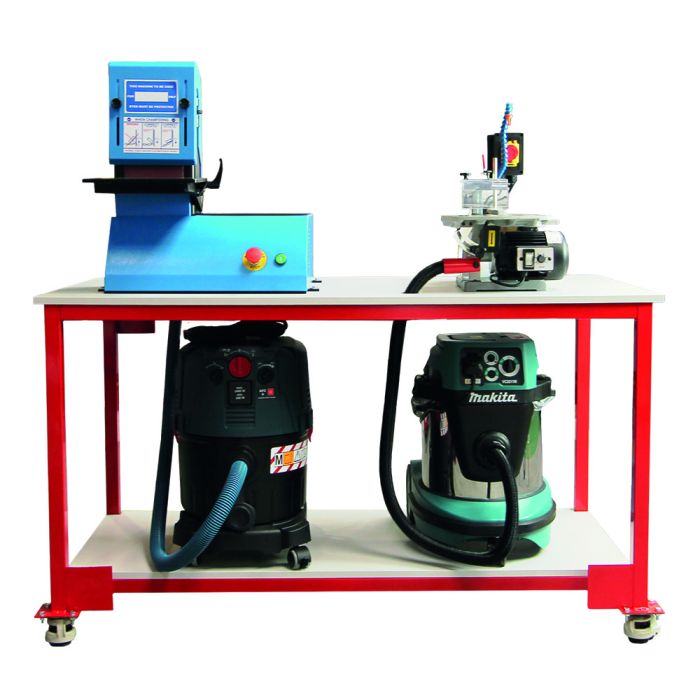

The Flamefast Mobile Bench OPTION 3 consists of one educational compliant Bandfacer and Fretsaw along with one HSG250 compliant extractor unit. The bench is a heavy duty mobile workbench fitted with swivel casters that incorporate a safety wind down rubber foot which acts as a locking mechanism. The frame is made up of 40mm steel box section. Equipment comes pre-wired and interlocked to extraction.
All Mobile Benches are supplied fully assembled ready to plug into a single phase 16 amp Commando type socket controlled by a lockable isolator switch.
Included: Flamefast Mobile Bench x1, Bandfacer x1, Fretsaw x1, Extractor B x1, Extractor M x1.
Bench size: L x W x H: 1500 x 750 x 850mm. Additional height required for the tallest tool: 575mm. Overall weight: 208kg.
Specifications:
Mobile Bench:
Size ( L x W x H) - 1500 x 750 x 850mm
Table Top Size - 1500 x 800 x 20mm (70 with frame)
Net Weight - 60kg
FretSaw/Scroll Saw:
Size ( L x W x H) - 620 x 285 x 310mm
Weight - 29kg
Motor Power - 120W
Table Size & Tilt - 460 x 235mm / 0 - 45°
Max Depth of Cut - 65mm
Cuts per min - 400-1400(var)
Stroke Length - 10 & 20mm
Throat Depth - 460mm
Voltage - 230V
Plug Fitted - UK 3 pin
Max Depth of cut @ 9° - 65mm
Dust Extraction Outlet - 40mm
Bandsaw:
Worktable Size (W x D) - 278 x 226mm
Belt Size (WxL) - 150 x 1090mm
Belt Speed - 1500rpm
Motor - 3 Phase = 1.5 kw / 1 Phase = 0.75 kw
Electrical Supply - 400V/3ph/50Hz or 230V/1ph/50Hz
Weight - 97kg
Extractor M:
Power take off wattage(240V) - 2000W
Max Airflow - 3.6m3/min
Dust Bag Capacity - 28 Litres
Max Sealed Suction - 21.0kPa
Tank Capacity - 30 Litres (23 Litres Wet)
Noise Sound Pressure - 72dB(A)
Hose Length - 3.5m
Hose Diameter - 32mm
Input Wattage - 1000W
Net Weight - 11kg
Extractor B:
Rated Input Power - 1200W
Container Volume - 35 L (gross) / 23 L (net) / 19.2 L (water net)
Dust Class - M
Tool Dimension (W x L x H) - 375 x 515 x 575mm
Filter Surface area - 6150cm2
Max Airflow Rate (turbine) - 74l/s
Max Vacuum Pressure (turbine) - 254mbar
Voltage, electrical - 240V
