Kitronik USB LED Strip with Light Sensor
£3.67
Web Code
KIT3562
QTY:
Over 200 in stock
Kitronik USB LED Strip with Light Sensor
The Kitronik LED strip with a sensor has been specifically designed for use in custom enclosures for low-power lighting. The onboard sensor makes it the perfect choice for a night light or desk illumination that comes on when the ambient light levels drop. If desired, the sensor can be bypassed with a flick of a switch for continuous lighting.

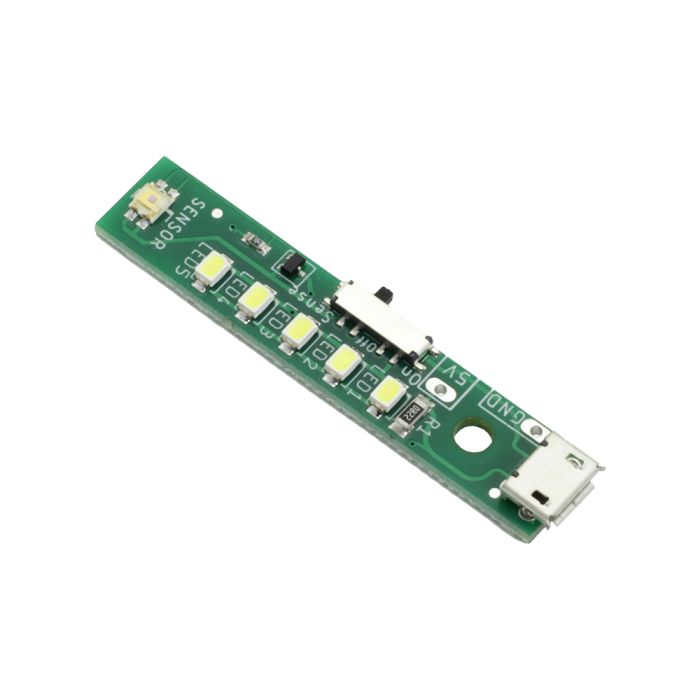

The power requirements of the board fall within the supply rating of a computer USB port (under 100mA). The PCB is approx. 50mm long, 10mm wide and has a mounting hole at one end. The board features 5 bright LEDs (Luminous Intensity ~8000mCd), a micro-USB power input, a phototransistor, and a three-way switch. The board also features GND and +5V pads for attaching alternative power sources.
The side-mounted slide switch has three positions: On, Off and Sense. The On and Off positions directly turn on/off the LEDs, whereas the Sense position makes use of the end-mounted phototransistor to turn the LEDs on when the darkness threshold has been reached.
A clear gap has been left between the phototransistor and the rest of the components to allow a barrier to be placed between them in an enclosure design, ensuring no light from the LEDs can affect the sensor.
Features:
Specifically designed for low-power lighting projects.
The board features a light sensor, ideal for designing enclosures for night lights.
Control comes via a side-mounted 3-position switch.
Position 1 = On.
Position 2 = Off.
Position 3 = Sense.
The board can be powered via a computer USB port.
The board also features GND and +5V pads for attaching alternative power sources.
The PCB features 5 LEDs (Luminous Intensity ~8000mCd) and a single mounting hole.
Contents:
1 x White USB LED Strip with Sensor.
Web Price | £3.67 |
---|---|
Web Code | KIT3562 |
Alternative Codes | KIT3562 |
Brand | Kitronik |
Pack Size | Each |
Pack Size | Each |
