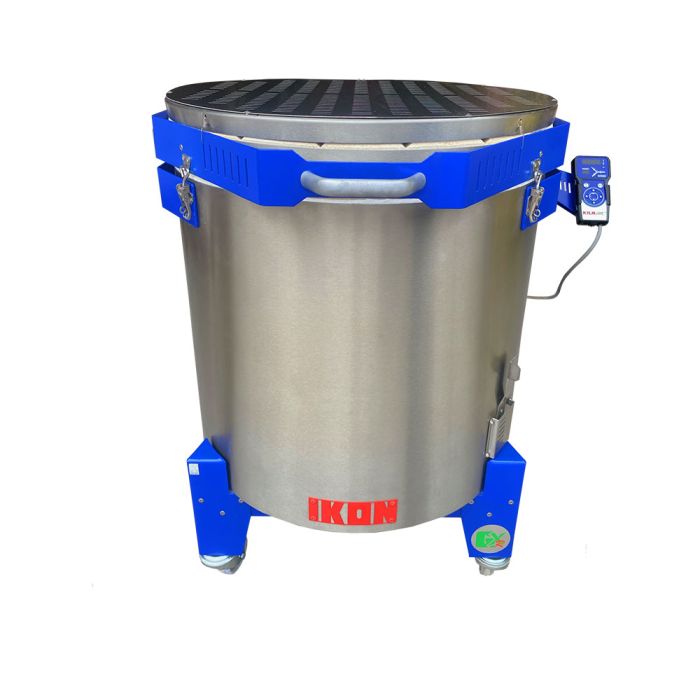

Top Loading IKON V46 Kiln

The IKON V46 and V61GXR top loading kilns come with a standard 13A plug and lead, allowing you to simply plug them into a standard wall socket. These models have many features to make them very efficient.

Triple-system lid insulation with twin lid clamps and double-layer floor insulation with a full stainless steel underplate. There is also a padlock locking facility should you need it.

The IKON models have a unique shutter that can vary the effectiveness of the exhaust, as well as close it altogether when the efficiency of the kiln is most needed.

The kilns are supplied with a multi-program controller designed for glass and ceramic use. It has 32 programs, each with up to 32 segments. Each segment is a controlled heating or cooling ramp followed by a soak. It is supplied pre-programmed to match the Specialist Crafts glazes, but each program can be easily adjusted. The controller can be held remotely, allowing for an easy and comfortable programming process. The keyboard is lockable and includes a delayed start facility of up to 4 days, power failure recovery and a mains power switch.

Specifications

Internal size: 416mm diameter x 330mm height

External size: 725mm wide x 870mm deep x 775mm high

External width with side-mounted controller: 890mm

Capacity: 46 litres

Weight: 88kg

Power: 2.9kW

Current: 12.6A

Voltage: 230V

Maximum temperature: 1315°C

Delivery Information

Please note that the price of the kiln excludes delivery charges. A delivery estimate will be included with your official quotation before placing the order.

PLEASE NOTE

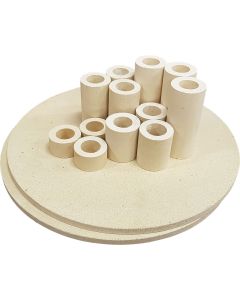

The kilns are not supplied with kiln shelves or props. To order a set of kiln furniture, please look for the codes below on our website and order at the same time as your kiln:

For kiln code PM700 IKON V46, order PM700F kiln furniture.

For kiln code PM701 IKON V61GXR, order PM701F kiln furniture.
