Mobile Bench 06 - Wood Lathe and Extractor
Key Features:
• Industrial grade hardwearing castors
• Emergency Foot Stops where necessary
• All machines pre wired and ready to go
• Integrated extraction system comes with LEV Indicator
• Supplied fully assembled ready to plug into single phase 16amp commando type socket
• Interlocking (electric and extraction)
• Manufacturers 1 year warranty
• UK Manufactured

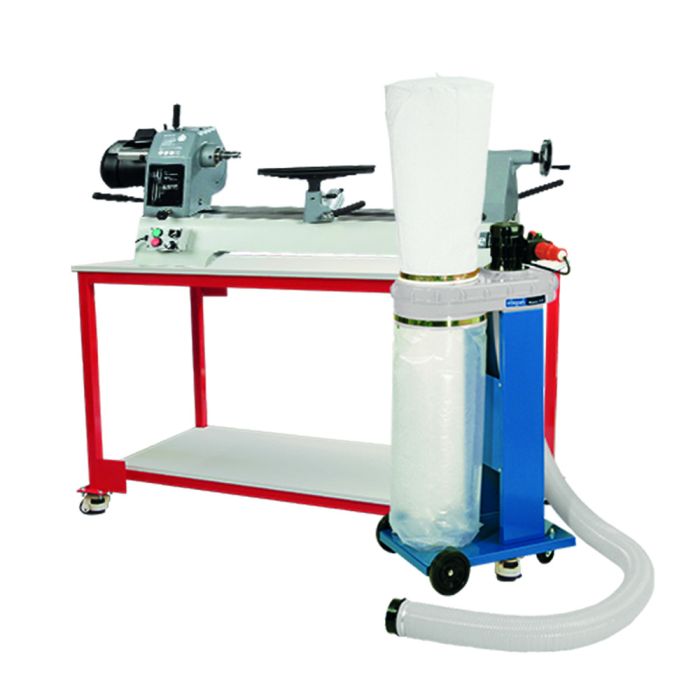

The Flamefast Mobile Bench OPTION 6 consists of one educational compliant Wood Lathe along with a HSG250 compliant extractor unit. The bench is a heavy duty mobile workbench fitted with casters that incorporate a safety wind down rubber foot which acts as a locking mechanism. The frame is made up of 40mm steel box section. Equipment comes pre-wired and interlocked to extraction.
All Mobile Benches are supplied fully assembled ready to plug into a single phase 16 amp Commando type socket controlled by a lockable isolator switch.
Included: Flamefast Mobile Bench x1, Wood Lathe x1, Extractor W x1. Bench size: L x W x H: 1500 x 750 x 850mm. Additional height required for the tallest tool: 1880mm. Overall weight: 250kg.
Specifications:
Mobile Bench:
Size ( L x W x H) - 1500 x 750 x 850mm
Table Top Size - 1500 x 800 x 20mm (70 with frame)
Net Weight (table only) - 60kg
Wood Lathe:
Size ( L x W x H) - 1650 x 480 x 550mm
Net Weight - 160kg
Distance between centres - 710mm
Headstock Taper - 2MT
Lathe Speed - 50-1,250 / 150-3,750 rpm
Max Diameter - 875 mm (using bed extension mounted)
Max Diameter over Bed - 406mm
Power - 1.5kW
Rating - Trade
Spindle Thread - M33 x 3.5mm
Tailstock Ram Travel - 112mm
Tailstock Taper - 2MT
Tool Post Diameter - 25.4 mm (1”)
Voltage - 230V
Extractor W
Size (L x W x H) - 640 x 490 x 1880mm
Weight (corded tool) - 30kg
Suction connector 0 - 100mm
Extraction Rate - 1000 m3/hr
Hose length - 2500mm
Hose Diameter - 100mm
Air capacity - 1500 m3/h
Filling Capacity - 80L
Partial vacuum - 1200 pa
Motor - 230V-400V
Power Output - 600W
Power Supply - Electric
Power Voltage - 240V
Extractor type - Dust Extractor
Suitable Dust Class - Suitable for L Class Dust
Web Price | £8,600.42 |
---|---|
Web Code | BN156 |
Alternative Codes | BN156 |
Brand | FlameFast |
Pack Size | Each |
Pack Size | Each |
GTIN | 50282882252930 |
